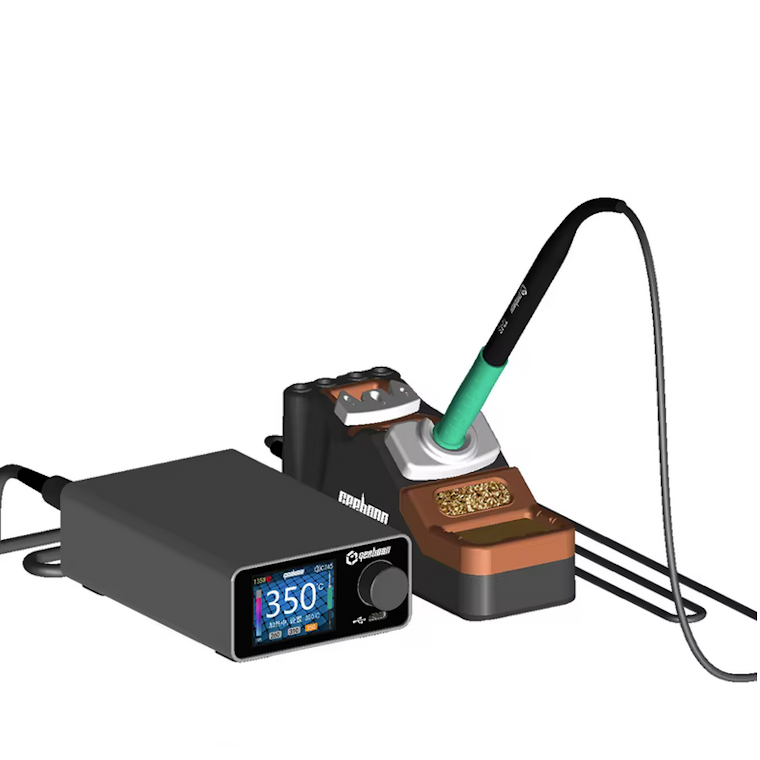

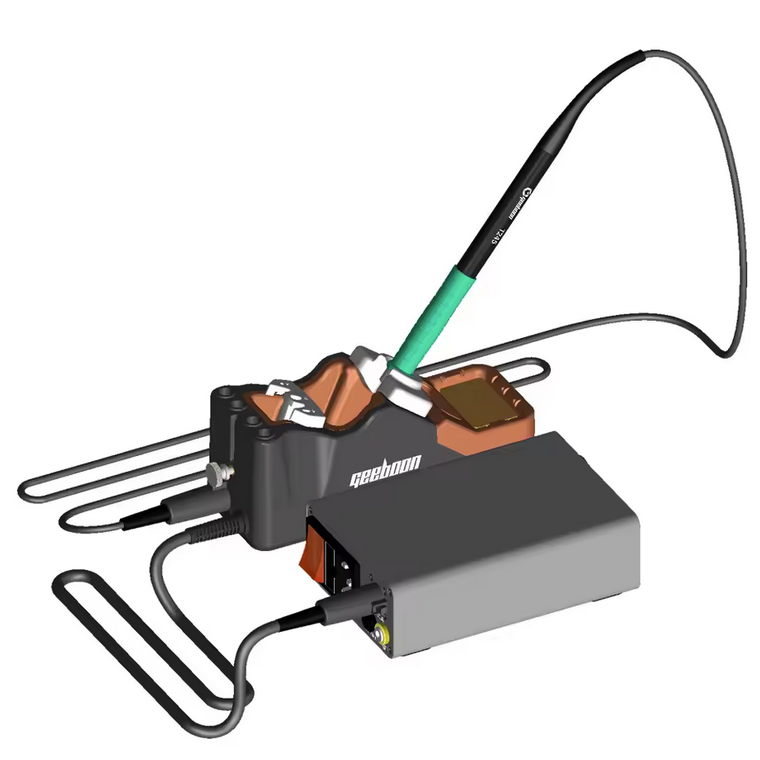

GEEBOON 220W TC22 Soldering Station

Description

Revolutionise your soldering setup with the Geeboon TC22 Soldering Station, a high-performance 240W JBC compatible solder station engineered for demanding electronics repair, PCB prototyping, and micro-soldering tasks. This compact, full-metal station supports universal input (110-240V) and delivers rapid heating (up to 480°C in seconds) with intelligent controls like sleep mode, auto-shutdown, and real-time temperature graphing ensuring stable output for flawless joints on motherboards, smartphones, and custom circuits. With ground resistance under 2Ω and tip voltage below 2mV, it meets ANSI/ESD S20.20 standards for safe, low-leakage operation in sensitive environments.

Key Features:

• High-Power Performance: 240W peak (unlocked for C245), with short-circuit protection (<10μs response) and hot-swappable cartridges to prevent host or tip damage during intensive use.
• Intuitive Colour Curve Display: Real-time graphs track temperature and power curves for precise monitoring; ergonomic knob for quick adjustments from 100-480°C.
• ESD-Safe & Durable Build: Full metal enclosure (450g) with low leakage (<10mV) and sleep mode (handle on stand enters low-temp standby, auto-resumes on pickup).

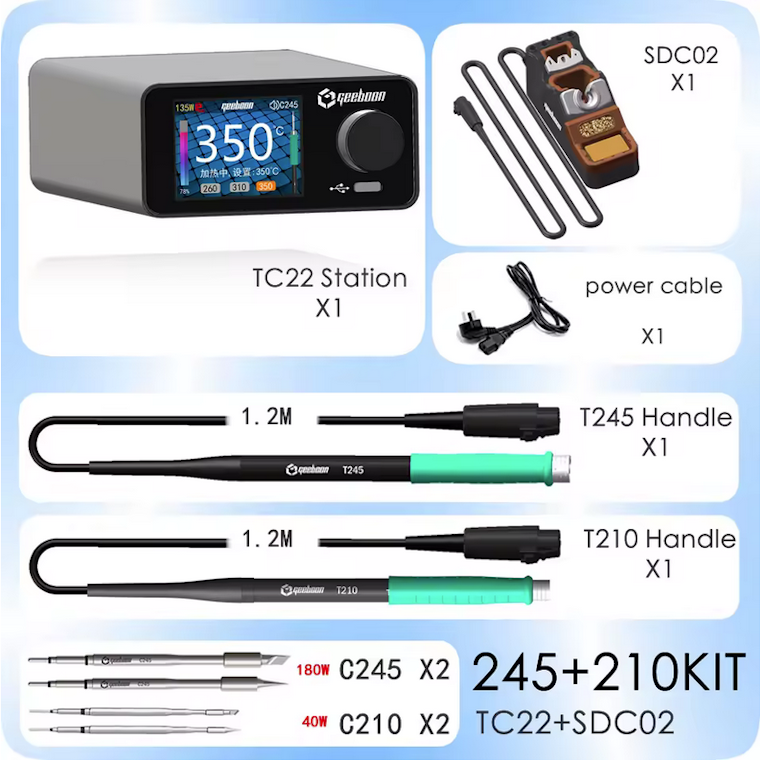

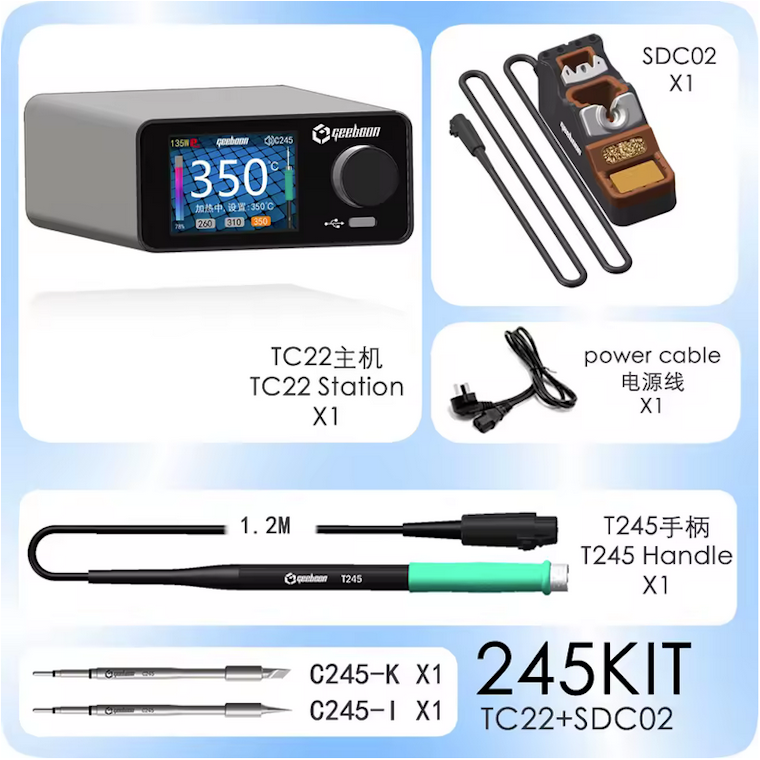

• Versatile Accessories Included: Comes with T210 and T245 handles (1.2m cables), C210 and C245 tips, SDC02 stand, and power cable ready for immediate deployment.

Handle Compatibility: The TC22 excels in flexibility, supporting JBC-style handles for T12, C115, C210, and C245 cartridges. Switch seamlessly between T12 (for fine de-soldering and suckers) and larger C-series handles for heavy-duty work – no adapters needed, though handle swaps are quick via standard JBC connectors. Compatible with Geeboon SDC02 stands for sleep functionality across all handles.

Whether you’re a pro technician re-balling BGA chips or a hobbyist building guitar pedals, the Geeboon TC22 outperforms budget stations with its JBC-level precision, reliability, and affordability. Praised in soldering communities for fast recovery and minimal standby power, it’s the ultimate upgrade for versatile workflows.

Why Choose Geeboon TC22? Unlike single-cartridge stations that limit tip options, this multi-compatible beast handles everything from 0201 SMDs to drag soldering – with zero-calibration setup and firmware up-gradability for future-proofing.
